$298.00
Adding to Cart Added to Cart

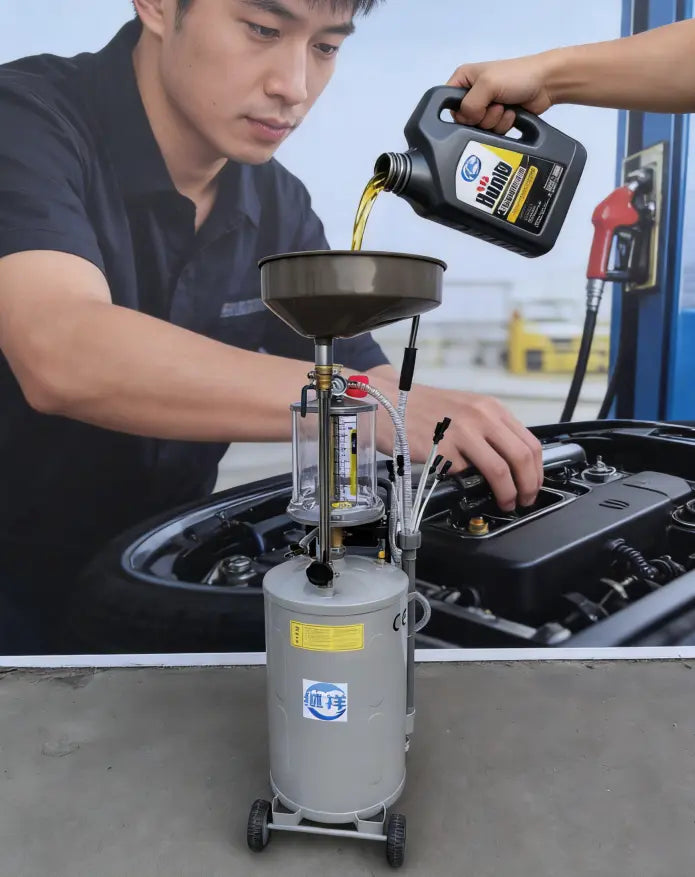

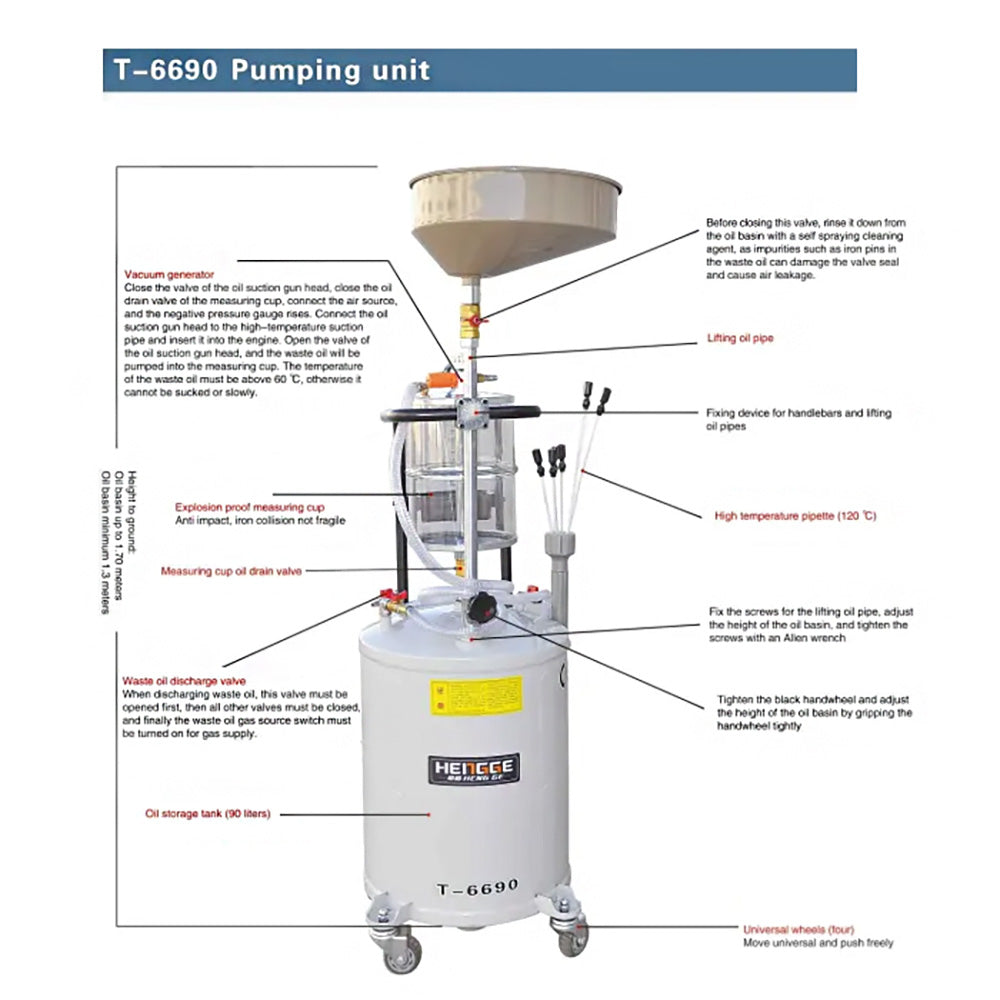

The T-6690 Oil Drain Machine is a high-flow waste oil processing unit engineered for professional automotive repair environments. Featuring a combination of a 90L large-capacity storage tank and an open receiving pan, it integrates a dual system of vacuum suction and gravity drainage. The device utilizes a vacuum generator to create negative pressure for the rapid extraction of engine waste oil, while also allowing for the direct collection of dripping oil.

Equipped with professional accessories such as a liftable measuring cup, high-temperature and high-pressure resistant hoses, and splash-proof connectors, it supports pressurized oil extraction and precise metering.

Compatible with oil change operations for various vehicle types, the T-6690 is a practical tool for enhancing maintenance efficiency in auto repair shops.

  • MOQ 600: 1L / 2L / 800g
  • MOQ 300: 4L / 1.8kg / 4kg
  • MOQ 50: 16L / 18L / 200L / 9kg / 15kg / 18kg / 20kg / 200kg / 1000kg
  • MOQ 100: 10KG

The T-6690 Oil Drain Machine is widely suitable for automotive 4S dealerships, comprehensive repair shops, express maintenance chains, and construction machinery applications.

The core strengths of this oil drain machine are reflected in its efficiency, durability, and convenience.

High Performance: The vacuum suction system achieves high negative pressure extraction. Paired with specialized corrosion-resistant hoses, it is compatible with various fluids including engine oil and antifreeze, delivering superior operational efficiency.

Safety & Visibility: The unit features a thickened, explosion-proof transparent tank combined with impact-resistant connectors and fully sealed valves. This design ensures operational safety while enabling real-time monitoring of oil levels.

Adjustability & Mobility: The lifting oil hose and manual hand-crank adjustment mechanism allow for flexible adaptation to the chassis heights of different vehicle models. The self-draining outlet features an anti-clogging design, and the mobile casters ensure smooth transitions between workstations, combining professional performance with ease of use.

Contact Us >>

Technical Parameters

T-6690 (with Measuring Cup)

Item
Specification
Air Source Pressure 7-9bar
Exhaust Pressure 0.6-0.8bar
Air Consumption 150L/Min
Vacuum Degree 0-1bar
Tank Volume 90L
Tank Diameter 440mm
Tank Height 620mm
Measuring Cup Volume 10L
Tray Volume 20L
Tray Dimensions 400mm
Tray Adjustment Height 1300-1600mm
Tray Extension Diameter 560mm
Tray Extension Height 110mm
Working Oil Temperature 40-60°
Oil Suction Needles 6 pcs
Φ5 × L750mm, (PVC, 1PCS) Extraction Speed: 1.9L/Min
Φ6 × L750mm, (PVC, 1PCS) Extraction Speed: 3.2L/Min
Φ6 × L750mm, (PVC, 1PCS) Extraction Speed: 4.2L/Min
Φ6 × L1000mm, (PVC, 1PCS) Extraction Speed: 3.5L/Min
Φ5 × L750mm, (PVC, 1PCS) Extraction Speed: 2.1L/Min
Φ8 × L900mm, (PVC, 1PCS) Extraction Speed: 5.1L/Min
Suction Hose Length 1.4m
Discharge Hose Length 1.5m
Brake Fluid Special Hose Length 1.5m
Tool Box 170mm × 120mm
Steering Wheel Φ100mm
Wheelbase 450mm
Applicable Medium Engine Oil (It is strictly prohibited to suck liquids other than engine oil)
Packaging Measuring Cup/Box, Oil Storage Tank/Box
Measuring Cup Weight (Net/Gross) 4.4kg/5.3kg
Oil Storage Tank Weight (Net/Gross) 25.5kg/27.6kg
Main Unit Weight 31kg/33kg
Carton Dimensions 270×270×625mm/500×470×890mm
