$238.00
Adding to Cart Added to Cart

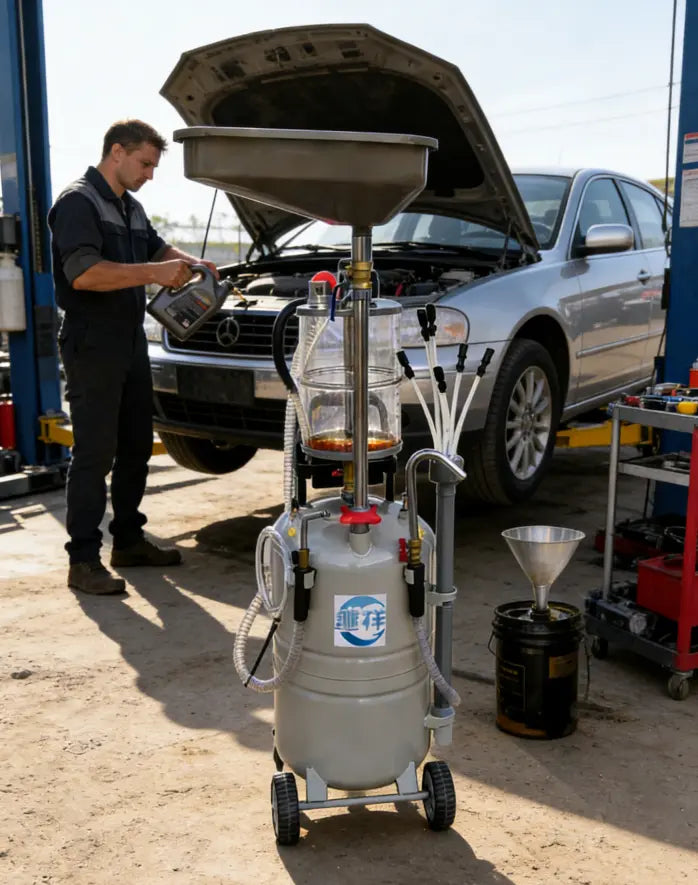

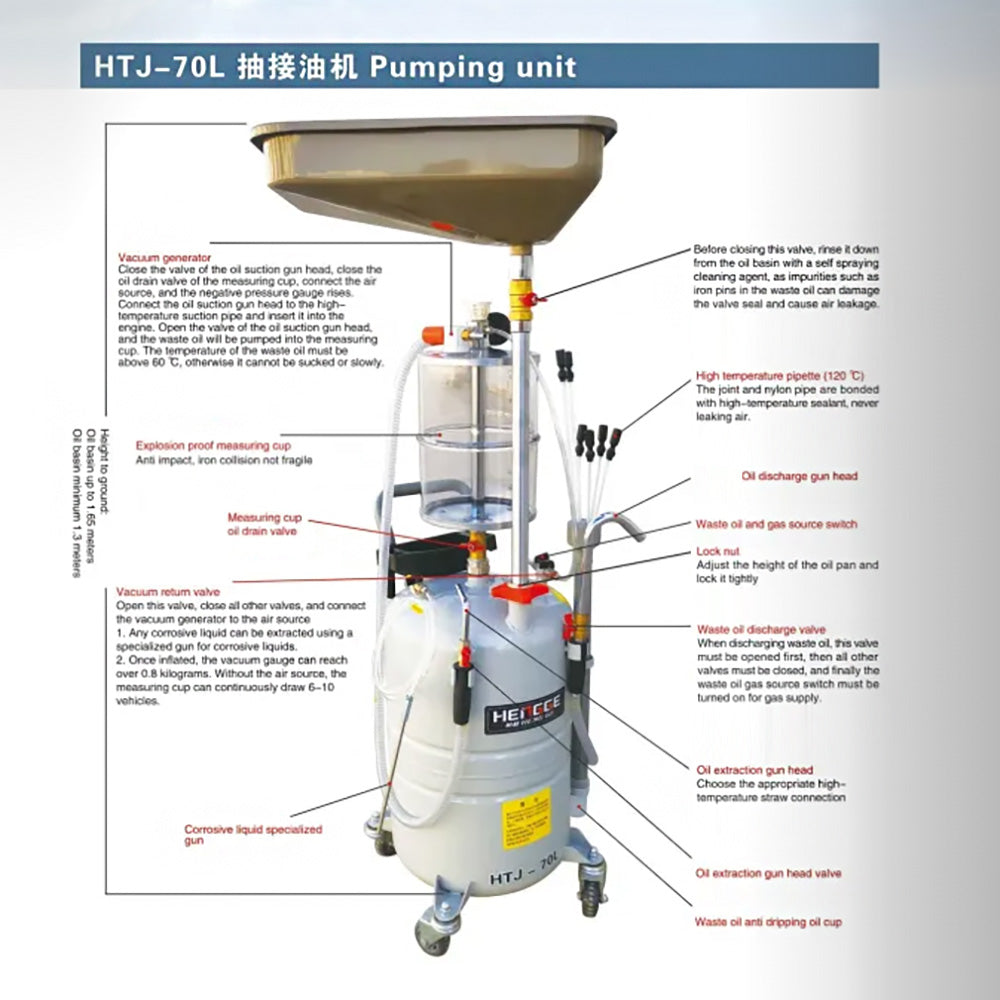

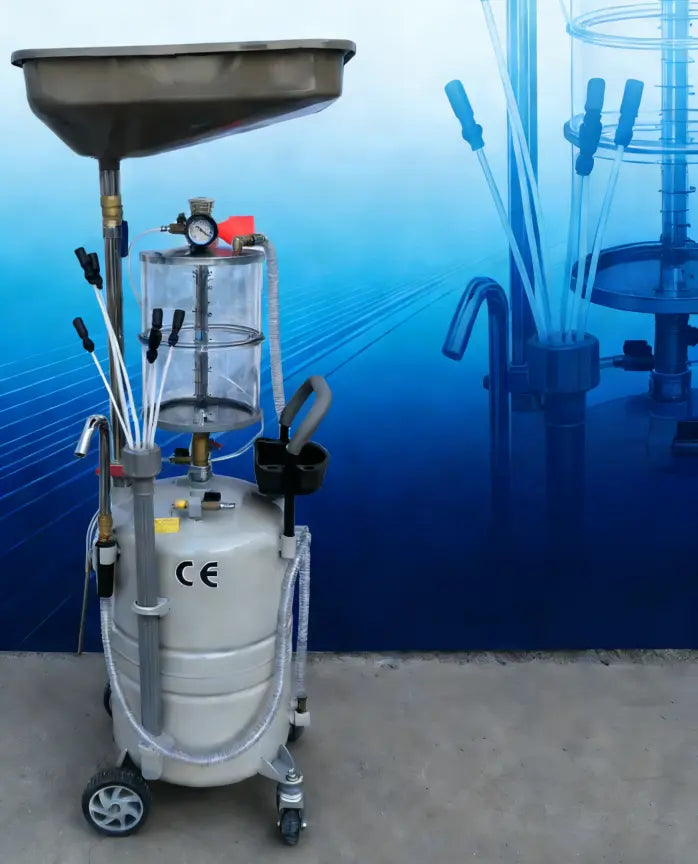

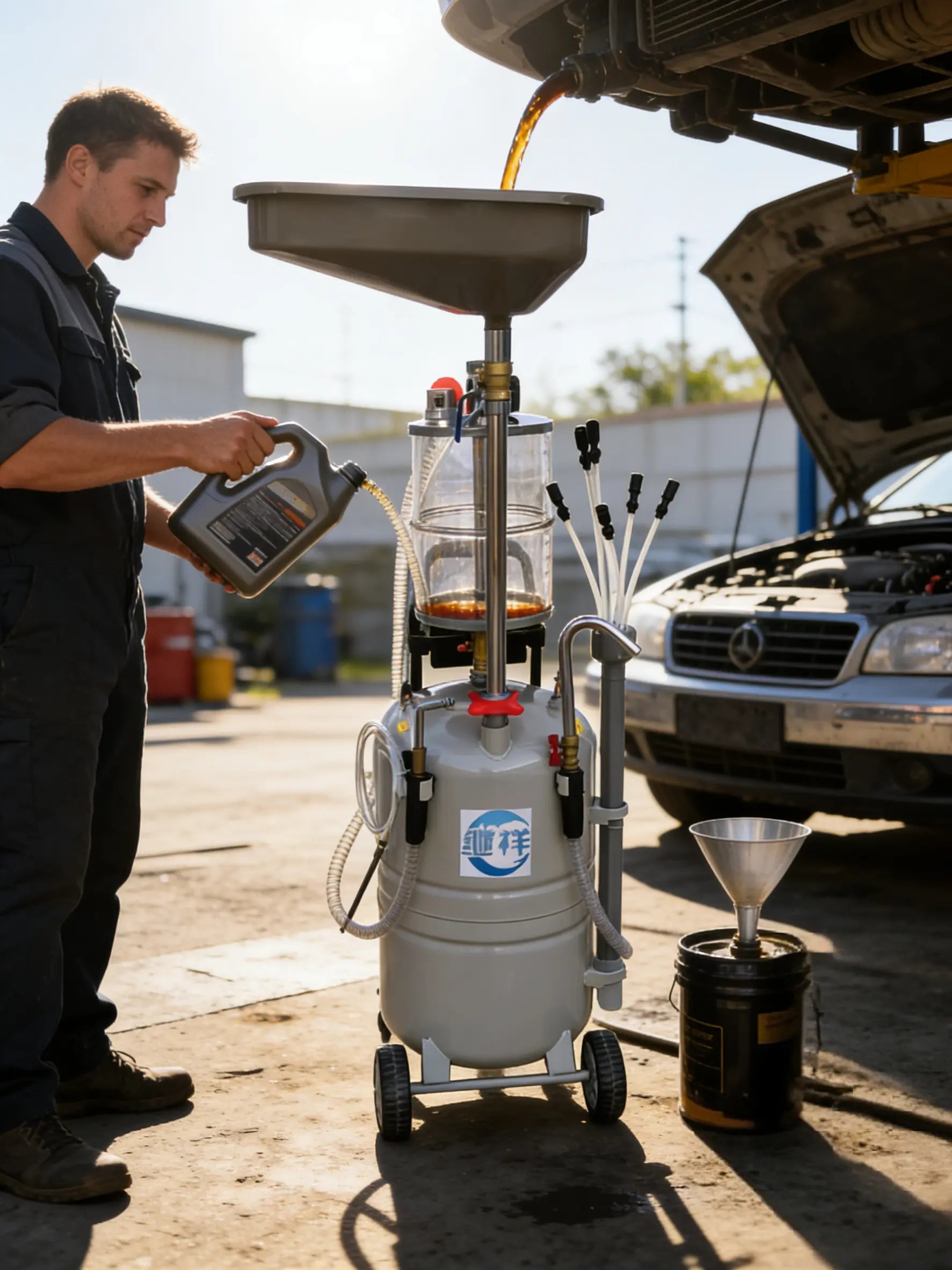

The HTJ-70L Pumping Unit is a waste oil processing unit designed specifically for automotive repair scenarios. It integrates oil extraction, collection, and metering functions into one device. Featuring a large-capacity 70L collection tank combined with an open receiving pan, it utilizes a dual system of vacuum suction and gravity drainage. This allows it to quickly extract waste oil from various engines via the vacuum valve or directly collect dripping oil through the self-draining valve. Equipped with accessories such as a measuring cup, splash-proof connectors, and temperature-resistant hoses, it supports pressurized oil extraction and precise metering, meeting the waste oil recovery needs of diverse automotive repair environments.

  • MOQ 600: 1L / 2L / 800g
  • MOQ 300: 4L / 1.8kg / 4kg
  • MOQ 50: 16L / 18L / 200L / 9kg / 15kg / 18kg / 20kg / 200kg / 1000kg
  • MOQ 100: 10KG

The HTJ-70L is widely suitable for auto repair shops, 4S dealerships, express maintenance chains, and auto detailing centers. It is capable of handling engine oil changes for mainstream models including sedans, SUVs, and light trucks, as well as oil recovery for construction machinery and agricultural equipment. It is particularly ideal for professional automotive scenarios with high demands for efficiency and environmental protection, capable of supporting both daily small-scale maintenance and batch operations for medium-sized repair facilities.

The core strengths of this oil drain machine lie in its efficiency, safety, and versatility.

High Efficiency: The vacuum suction system generates up to 0.8 bar of negative pressure. Paired with specialized corrosion-resistant hoses, it is compatible with various corrosive fluids like engine oil and antifreeze, achieving an extraction efficiency of 6–10 vehicles per hour.

Safety & Visibility: The unit features a thickened, explosion-proof transparent tank. Combined with impact-resistant connectors and fully sealed valve designs, it ensures operational safety while allowing for real-time oil level monitoring.

User-Friendly Design: The self-draining outlet includes an anti-clogging filter to reduce the risk of blockage by impurities. Its mobile casters and compact structure make it adaptable to various maintenance bays, offering both professional performance and ease of use.

Contact Us >>

Technical Parameters

HTL-70L Multi-function Oil Extraction and Filling Machine (with Measuring Cup)

Item
Specification
Air Source Pressure 7-9bar
Exhaust Pressure 0.6-0.8bar
Air Consumption 150L/Min
Vacuum Degree 0-1bar
Tank Volume 70L
Tank Diameter 380mm
Tank Height 680mm
Measuring Cup Volume 10L
Tray Volume 20L
Tray Dimensions 385mm × 525mm
Tray Adjustment Height 1300-1600mm
Working Oil Temperature ≥ 60°
Oil Extraction Needles 6 pcs
Φ5 × L750mm, (PVC, 1PCS) Extraction Speed: 1.9L/Min
Φ6 × L750mm, (PVC, 1PCS) Extraction Speed: 3.2L/Min
Φ6 × L750mm, (PVC, 1PCS) Extraction Speed: 4.2L/Min
Φ6 × L1000mm, (PVC, 1PCS) Extraction Speed: 3.5L/Min
Φ5 × L750mm, (PVC, 1PCS) Extraction Speed: 2.1L/Min
Φ8 × L900mm, (PVC, 1PCS) Extraction Speed: 5.1L/Min
Oil Suction Hose Length 1.4m
Oil Discharge Hose Length 1.5m
Tool Box 170mm × 120mm
Fixed Wheel Φ120 × Width 30mm
Swivel Wheel Φ75mm
Wheelbase 400mm
Applicable Medium Engine Oil (It is strictly prohibited to suck liquids other than engine oil)
Packaging Measuring Cup, Oil Storage Tank + Tray / Box
Measuring Cup Weight (Net/Gross) 6.5Kg / 7.2kg
Main Unit Weight 21.5kg / 23.1kg
Carton Dimensions Main Unit 445 × 475 × 940mm; Measuring Cup / 270 × 270 × 550mm
